Just like Western Star owners and operators, Truck Equipment Manufacturers (TEMs) are big fans of our X-Series, too. And no wonder. We designed the X-Series for easy body upfitting, whether the end product is a dump truck, concrete mixer, or crane truck. We’ve engineered our chassis to make it fast and simple to access wiring and add controls. All technical details can be found in the Technical Resource Guide (TRG). For access to the TRG, log onto DTNAPortal.com.
Choose from 8-, 13-, and 23-gallon capacities, all mounted in the most forward position for consistent fill and fender gaps.
Our standard battery box mounting inside the cab and under the passenger seat to optimize open frame space. Battery boxes can also be mounted between rails or frame-mounted.
Air tanks can be mounted below the battery box, inside or below frame rail, or perpendicular to the frame. Aluminum models are available for additional weight savings.
X-Series fuel tanks have a 25-inch diameter with capacities from 60 to 150 gallons. They can be mounted either fore or aft. Rectangular, left-hand fuel tanks with raised mounting are available for belly plow applications in 60-, 80- and 90-gallon sizes.
Factory-installed split hydraulic/fuel tanks are available to reduce upfit time and maximize frame space.
Our standard air dryer mounting location helps increase frame space behind the cab.
Count on easier truck equipment integration for applications, such as mixer, that require power using rear engine PTO.
Transition plate options are available for easier upfit of mixer bodies.
Whether your application is snowplow, concrete mixer, dump truck, or something in between, the wide selection of options on Western Star X-Series trucks lets you choose the perfect combination of front engine PTOs — FEPTO, REPTO, and transmission-mounted PTOs — so you can install the equipment you need for the job at hand.

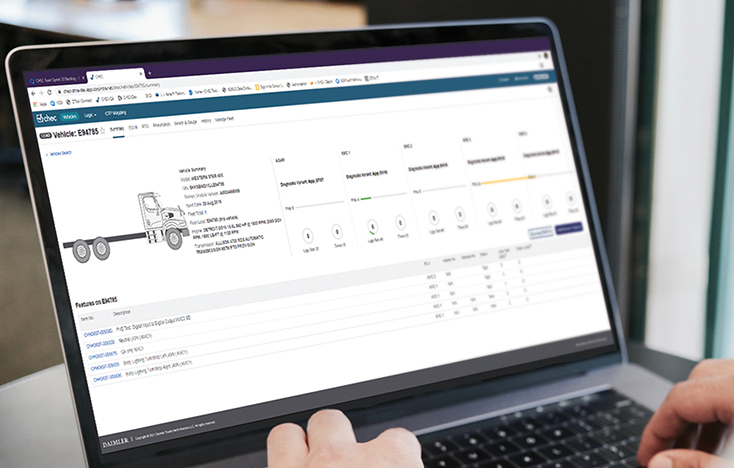

Western Star's proprietary CHEC Tool is the interface to the X-Series programmable controllers, enabling TEMs and dealers to view and modify electrical configurations.
CHEC gives you the power to customize inputs and outputs and change parameters within minutes — entirely within your organization – reducing upfit time and making the customization process user friendly. Creating unique dash layouts is just one example of the possibilities.
Standard templates can be created, enabling you to select pre-existing configurations based on different applications or customers.
QuickFit is a fully integrated upfit solution that offers customization, automation, and factory-backed components for X-Series trucks to improve operator experience, vehicle productivity, and business profitability.
With QuickFit, you can protect the integrity of your cab during upfit with dedicated connection points, and factory installed switches and indicators. Less rework at the upfitter puts your truck on the road faster.
Enhance safety and profitability with custom interlocks and automation through QuickFit powered by CHEC, a powerful programming tool for viewing and updating control logic for your body builds.
From upfit through service life, QuickFit offers improved productivity with standard, factory-warrantied components that preserve and retain the quality of your truck.
An auxiliary, in-cab, backwall-mounted E-Vault is also available and includes:
